XGPON Gateway
Enterprise-level XGPON MDU
CNCR XGPON MDU series is suitable for FTTB (Fiber to The Building) or FTTC (Fiber to The Curb) netwo...
- 产品概述
- 功能特性
- 技术参数
- 组网应用
- 相关资料
CNCR XGPON MDU series is suitable for FTTB (Fiber to The Building) or FTTC (Fiber to The Curb) network applications. It can provide high-quality data and high-definition video services to enterprise or community users, and can also be used in video surveillance scenarios.
MDU provide a PON uplink port and support GPON and XGPON uplink methods through different SFP optical modules. In addition, the device also supports 1GE upstream electrical port by MON port. Users can flexibly choose uplink mode according to their needs, which facilitates flexible networking. Downlink ports are up to 8/16/24 GE ports. XG-PON MDU series support a maximum downstream transmission rate of 9.95328 Gbit/s and an upstream transmission rate of 2.48832 Gbit/s, providing higher bandwidth to meet various business needs.
|
P/N |

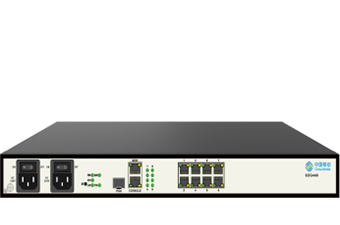

SDG1800M-10U-G8 |

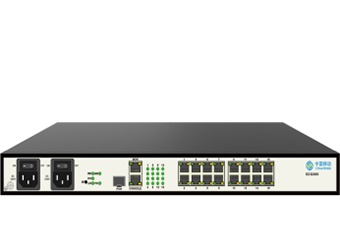

SDG1800M-10U-G16 |

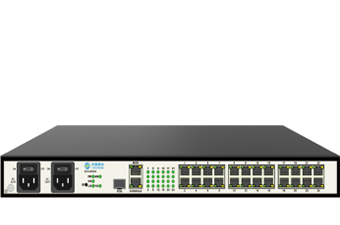

SDG1800M-10U-G24 |
|
WAN |
GPON\XGPON Bosa\SFP+ optional |
||
|
LAN |
8GE |
16GE |
24GE |
|
Management |
1× Console(RS232)，1× MON(RJ45),reset button |
||
|
Power supply |
1+1 dual redundant，100~240V AC，50/60 Hz |
||
|
Power consumption |
<20W |
<30w |
|
|
Equipment casing |
Metal |
||
|
Dimension L×W×H/mm |
440*228.5*44mm |
440*228.5*44mm |
440*228.5*44mm |
|
Lightning protection |
Lightning protection: Common mode: ±4KV Waveform: 1.2/50 |
||
|
ESD protection |
Air discharge: 1KV; Contact discharge: 1KV |
||
|
working environment |
25℃～65℃ Humidity: 0～95% |
||
|
dust-proof |
Normal operation in an environment with a dust concentration greater than 5m in diameter ≤3×104 particles/m3 |
||
