Hardware

Product Model

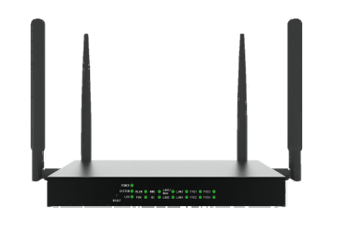

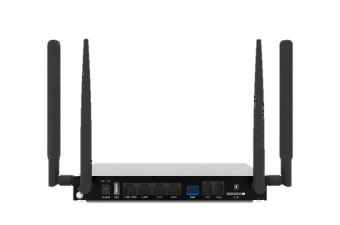

SDG350

Antenna interface

2× dual-band wifi antennas, 2× 4G module antennas, standard SMA interface, which can be connected with suction cup antennas/patch antennas/mushroom head antennas upon request

PON interface

1 ×  EPON/GPON self-adaptive interface

SIM/UIM card interface

1 × Self-elastic SIM card interface

USB interface

1× USB 2.0

LAN

4×10/1000M adaptive LAN port, supports automatic switching (Auto MDI/MDIX)

WAN

1×10/1000M adaptive WAN port, supports automatic switching (Auto MDI/MDIX)

FXS

2FXS Ports

LED

POWER, SYSTEM, LOS, WLAN, PON, NMS, 4G, WAN, LAN, FEXS

Button

1×Reset

WiFi

IEEE802.11b/g/n and Mixed Working mode

IEEE802.11 ac/ax optional

2×2 MIMO, 2.4/5Ghz, 2× external 5dBi antennas

LED

Power,PCIE module indicator,WLAN,WAN,LAN

Button

1 Reset button

USB

1× USB2.0

Shell color

black iron shell (customizable)

Work

environment

Working temperature: -20℃ to 60℃;

Storage temperature: -40℃ to 70℃;

Operating humidity: 10% to 90%RH non-condensing

Storage humidity: 5% to 90%RH non-condensing

Software

Uplink access

Supports GE port, EPON/GPON adaptive uplink, supports 4G uplink, supports WAN multiple sub-interfaces, PPPoE, PPP, DHCP access, and static IP access

Basic function

Supports bridging, routing and mixed working modes, supports DHCPServer, DNS, NAT, routing, EoIP, NTP, VLAN, multicast, etc.

QoS

Supports rate limiting for VLANs, IP address segments, ports, and protocols; supports 802.1P marking and DOTSCP marking of traffic; supports setting traffic priorities to ensure bandwidth for key services

Voice

Supports IMS SIP, NGN SIP, and common voice gateway functions

4G

CAT4, supports downlink rate 150Mbps and uplink maximum rate 50Mbps

LTE TDD:B34/B38/B39/B40/B41;LTE FDD:B1/B3/B5/B8; GSM:900/1800MHz

Supports 4G module identification display, uplink and downlink traffic display, and PON/4G dual-link intelligent switching

Security

Supports firewall, access control, content filtering, intranet ARP attack prevention and DMZ host functions

SDWAN

Support L2TP VPN, IPSec VPN, PPTP VPN; Support Netconf, VxLAN

NMS

Support local Web management, support SNMP, TR069, SYSLOG remote network management
