Ethernet Demarcation Device
Ethernet Demarcation Device
CTN0100-108 series are designed for 1G/10G leased line service delivery and 4G/5G mobile back haulin...
- 产品概述
- 功能特性
- 技术参数
- 组网应用
- 相关资料
CTN0100-108 series are designed for 1G/10G leased line service delivery and 4G/5G mobile back hauling. They are the most compact and cost-effective MPLS Customer Edge devices, providing customers with affordable MPLS network accessibility. Standard CE2.0 services (E-Line, E-LAN,E-Tree, E-Access), various service models over MPLS (VPWS, VPLS, H-VPLS, L3VPN), and advanced OAM, SLA, resiliency features ensure service providers great flexibility and reliability in service design and deployment. The devices can operate in extended temperature range. And the support of SyncE and IEEE 1588v2 makes it ready for MBH applications. The IP/MPLS demarcation products are fully compatible with both the CNCR IP/MPLS aggregation PE router, pre-aggregation box devices as well as the 3rd-party vendor equipment on existing MPLS networks.
- Dual hot-swappable power supplies with voltage/temperature monitoring
- Compact design in half-19 inch width
- Zero-touch provisioning
- Standard CE2.0 services and VPWS, VPLS, H-VPLS, L3VPN over MPLS
- Flexibility in traffic classification ensures customer-defined SLA
- Full set of protection mechanisms for Ethernet, IP and MPLS services
- Standard ITU-T Y.1564 SAT and RFC2544 fest
- Hardware-based end-to-end SLA performance monitoring
- TWAMP light (Generator & Reflector)
- SyncE and IEEE 1588v2 TC/BC/OC for clock synchronization
- CLI-based management
|
P/N |

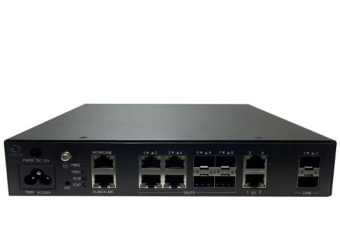

CTN0100-108-A1 |

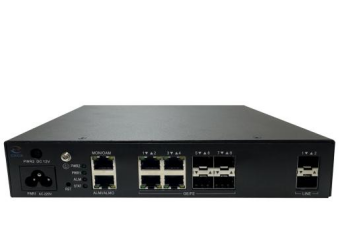

CTN0100-108-A2 |

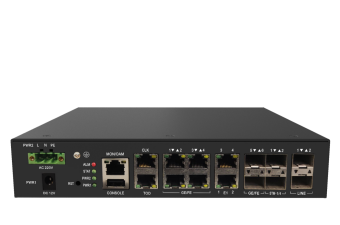

CTN0100-108-B |

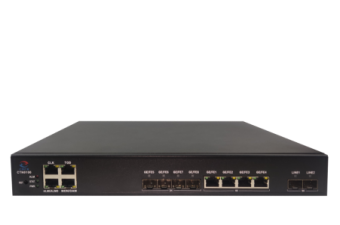

CTN0100-108-C |
|
Interface |
2xGE SFP(NNI)+4xGE SFP+4xGE/FE RJ45+4xE1 |
|||
|
2xGE SFP(NNI)+4xGE SFP+4xGE/FE RJ45 |
||||
|
2xOTU1/OTU0/STM-1(NNI)+4xGE SFP+2xGE/FE RJ45+4xE1+2xSTM-1 |
||||
|
2x10G SFP(FGU,NNI) +2xGE SFP+4xGE/FE RJ45 |
||||
|
Performance |
Bidirectional Switching capacity, Packet Forwarding rate |
|||
|
CTN0100-108-A1 |
CTN0100-108-A2 |
CTN0100-108-B |
CTN0100-108-C |
|
|
20Gbps, 14.88Mpps |
20Gbps, 14.88Mpps |
22.64Gbps |
56Gbps, 41.6Mpps |
|
|
Buffer |
The System Internal Buffer Memory ≥12Mb |
|||
|
Management Interface |
1 x CONSOLE (USB/RJ-45) |
|||
|
1 x MON/OAM port (RJ-45) |
||||
|
Clock interface |
1 x 2Mbit/2MHz Clock Interface (RJ45) |
|||
|
TOD (RJ45) |
||||
|
Power Supply |
Dual hot-swappable power, Voltage and temperature monitoring |
|||
|
CTN0100-108-A1 |
CTN0100-108-A2 |
CTN0100-108-B |
CTN0100-108-C |
|
|
AC:220V,100~240V, ≤20W DC:-48V,-36~-72V, ≤20W |
AC:220V,100~240V, ≤20W DC:-48V,-36~-72V, ≤20W |
AC:220V,100~240V, ≤20W DC:-48V,-36~-72V, ≤20W |
AC:220V,100~240V, ≤7W DC:-48V,-36~-72V, ≤7W |
|
|
FAN |
Without FAN |
Without FAN |
With FAN |
With FAN |
|
Environmental |
Operating Temperature: long-term-5~50˚C,short-term-20~65˚C |
Operating Temperature: -5~55˚C |
||
|
Humidity: 10~90% non-condensing |
||||
|
Storage, Transportation and Temperature: -25~75˚C |
||||
|
Dustproof |
IP40 |
|||
|
Dimensions (W)mm x (D)mm x (H)mm |
220*180*43.6 |
220*180*43.6 |
220*180*43.6 |
220*180*43.6 |
|
Weight |
1.1kg |
1.1kg |
1.1kg |
1.1kg |
