CTN7000-P-C

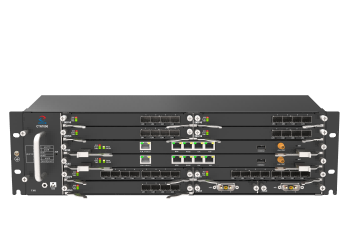

CTN7000-P-C is a modular pre-aggregation and aggregation platform that supports up to 440G switching capacity. Provides a comprehensive interface set supporting E1, STM-1, GE, 10G, 25G, 50G and 100G interfaces in a 3U height cabinet. It supports Layer2 VPN, Layer3 VPN, Ethernet VPN and multicast services, and is very suitable for government, finance, military, enterprise private network. Segment Routing (SR), Segment Routing version 6 (SRv6) and Isolated Virtual Private Network (EVPN) ensure that the equipment can perfectly match comprehensive multi-service application scenarios in the 5G era.

CTN7000-P-E

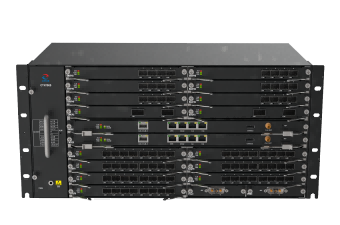

CTN7000-P-E is a chassis-type IP/MPLS service pre-aggregation devices. It provides Fast and Gigabit Ethernet,10GbE, 25GbE, 50GbE and 100GbE interfaces, as well as legacy E1 and STM-1 circuit emulation interfaces in a 5U height chassis with 15 slots for various types of service cards.These rich interfaces ensure CTN7000-P-E chassis work with CNCR intelligent CPEs to deliver and aggregate services on unified network management platform. Turnkey access and aggregation solutions is perfect for leased-line business delivery(government, finance, military, enterprise private network) and mobile back hauling.

• Modular design providing flexibility in hardware configuration
• High reliability guaranteed by dual redundant power supply modules,and dual control modules
• Various Ethernet interface cards available providing Ethernet interfaces from 1G, 10G, 25G, 50G and 100G.
• IPv4/IPv6 dual-stack
• MEF CE2.0 is compatible with E-Line, E-LAN, E-Tree, E-Access service with OAM and hardware-based SLA
• Powerful QoS and H-CAR
• VPWS, VPLS, H-VPLS, L3VPN over MPLS with service status and performance monitoring
• Complete routing protocol stack, RIP, OSPF, OSPFv3, IS-IS, BGP, BGP+
• NETCONF/YANG model to support SDN environment
• SyncE and IEEE 1588v2 TC/BC/OC for clock synchronization
• Spanning tree protocol suite, LACP, MC-LAG, standard ITU-T G.8031/8032 ensure high network flexibility and resilience
• Multicast traffic management by IGMPv1/V2/V3, PIM-SM, IGMP snooping, MLD v1/2 and snooping
• Ethernet VPN, Segment Routing and SRv6 for greater network simplicity, agility and scalability
• AAA and ACL ensure management security
• Standard CLI command management and configuration
• Manage service quality, network performance and security situation by CNCRview, help operators manage network services more intelligently and provide users with a good experience.

System and Sub-cards

Chassis

CTN7000-P-C-DC: CTN7000 3U chassis with fan module & 2x DC power modules, console and MON/OAM ports for management, dual hot-swappable DC power supply

CTN7000-P-E-DC: CTN7000 5U chassis with fan module & 2x DC power modules, console and MON/OAM ports for management, dual hot-swappable DC power supply

Service cards

CTN7000-MCSX: CTN7000 management & confrol module (IPRAN)

CTN7000-MCSX: CTN7000 management & confrol module (OTN)

CTN7000-MCSXE: CTN7000 managoment & confrol modiule (IPRAN)

EMCF2:1x100GE module(QSFP28) or 2x50GE module(QSFP28)

EMVF4: 4x25GE module SFP28 or 4x10GE module(SFP+)

EMXF4: 4x10GE module (SFP+) or 4xGE module(SFP)

EMXF4G: 4x10GE module (SFP+) with FGU

EMGF8: 8x1GE module(SFP)

SMGFX1: 2xSTM-1 module

E116: 16xE1 interfaces module (2El in one RJ45 connector)
