CTN7000-O

CTN7000-O is a new generation of intelligent transmission equipment developed by CNCR, which is a full-service access transmission platform dominated by large customer services and high-bandwidth comprehensive services. CTN7000-O is mainly aimed at the metropolitan area network access and aggregation layer, and is used to provide leased line services and aggregation OTN connections. CTN7000-O has three switching structures: OTN, MPLT-TP and SDH. By configuring different line cards, it can be flexibly deployed as an OTN transmission platform, carrier Ethernet and MPLT-TP aggregation system, or as a next-generation SDH multiplexer to provide various business access and aggregation, such as Fast Ethernet, Gigabit Ethernet, E1, STM-1, STM-4, STM-16, OUT-1, OUT-2, etc.

System and Sub-cards

Chassis

CTN7000-O-C-DC: CTN7000 chassis with fan module & 2x DC power modules, console and MON/OAM ports for management, dual hot-swappable DC power supply

CTN7000-O-E-DC: CTN7000 chassis with fan module & 2x DC power modules, console and MON/OAM ports for management, dual hot-swappable DC power supply

NMS switching card

CTN7000-MCSX: CTN7000 management & control module

OTN card

OMXF2:2xOTU2/OTU2e service interface card

OMVF8:8xOTU1 service interface card

OMGF8 :8xOTU0 service interface card

PTN card

EMXF4: 4x10GE module (SFP+) or 4xGE module(SFP) service interface card

EMGF8: 8x1GE module(SFP) service interface card

4X10GE EoO+EoS+EoOSU service interface card

8X1GE EoO+EoS+EoOSU service interface card

SDH card

SMGFX2: 8xSTM-1/4/16 interfaces module

E116: 16xE1 interfaces module (2 El in one RJ45 connector)

FEATURES

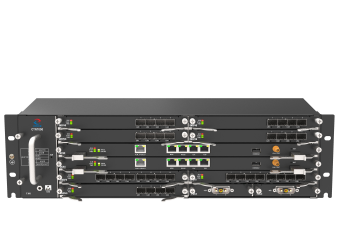

• CTN7000-O-C is a 3U chassis supporting 2 NMS cards, up to 7 service cards, 2 power supply cards and 1 fan card

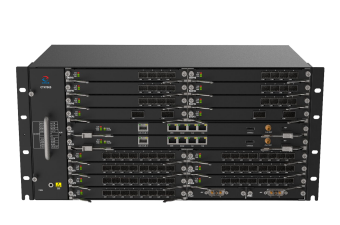

• CTN7000-O-E is a 5U chassis supporting 2 NMS cards, up to 15 service cards, 2 power supply cards and 1 fan card
• CTN7000-O is a high integrated device with front outlet design and supports sub-card hot swapping, -48VDC power supply, 1+1 power supply protection
• Flexible access to E1,STM-1/4/16/64,FE/GE,10 GE, OTU1/OTU2, etc.
• Support EOS, ETH over OTN, SDH over OTN, EOS over OTN, MPLS-TP over OTN
• Packets switching capability: 440G
• Support up to120xGE access, 60 x 10GE access
• Up to 300G VC4, 20G VC12/VC3
• Hybrid encryption and scheduling capabilities from SDH/PKT/ODUk to OTN
• Support real-time DM delay measurement for PM and TCM
